Product Parameters
1. Brand: AISUO
2. Model: Z1
3. Fingerprint capacity: ≤100
4. Password: ≤100
5. Magnetic card capacity: ≤100
6. Reading time: ≤0.5S
7. Working power: 4200mah built-in lithium battery (rechargeable)
8. Emergency power supply: USB interface
9. Working temperature: -15°-65°C
10. Working humidity: 20%~80% RH
11. Waterproof level: not waterproof
12. Surface material: acrylic

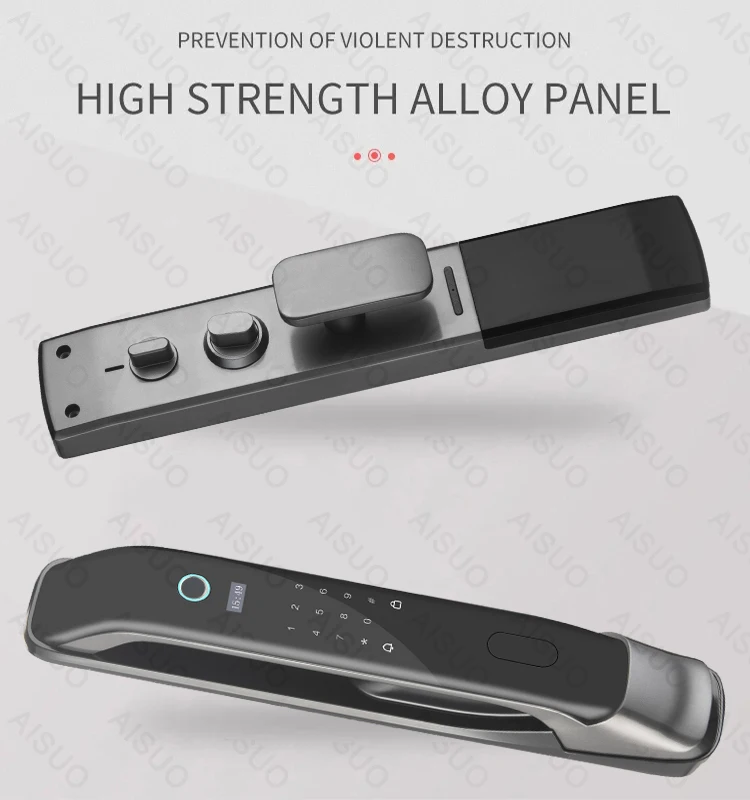

13. Panel material: zinc alloy
14. Lock body material: pure stainless steel
15. Installation door thickness: 3cm-12cm
16. System language voice: Chinese/English
17. Instruction manual: English
18. Installation environment: wooden door/metal door/iron door/steel door/aluminum door
19. Door opening direction: can be adjusted freely in the door lock system, compatible with left and right
20. Lock body size: support all anti-theft lock sizes (optional), extra large lock body needs to add freight
basic function
Fingerprint + Magnetic Card + Password + Key +TUYA APP+Double verification (this function can be freely switched on and off)

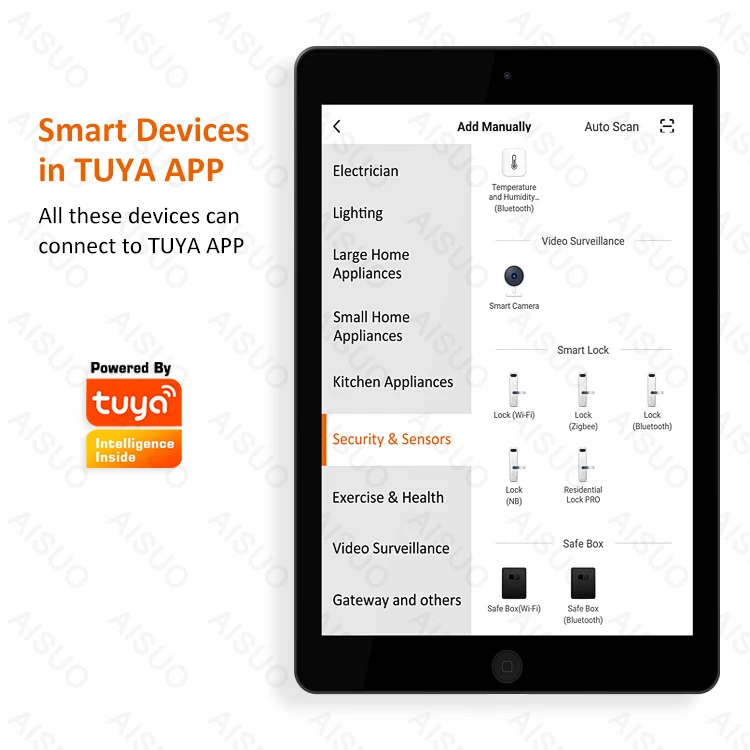

About TUYA
About TUYA
Works over WIFI (no gateway required)

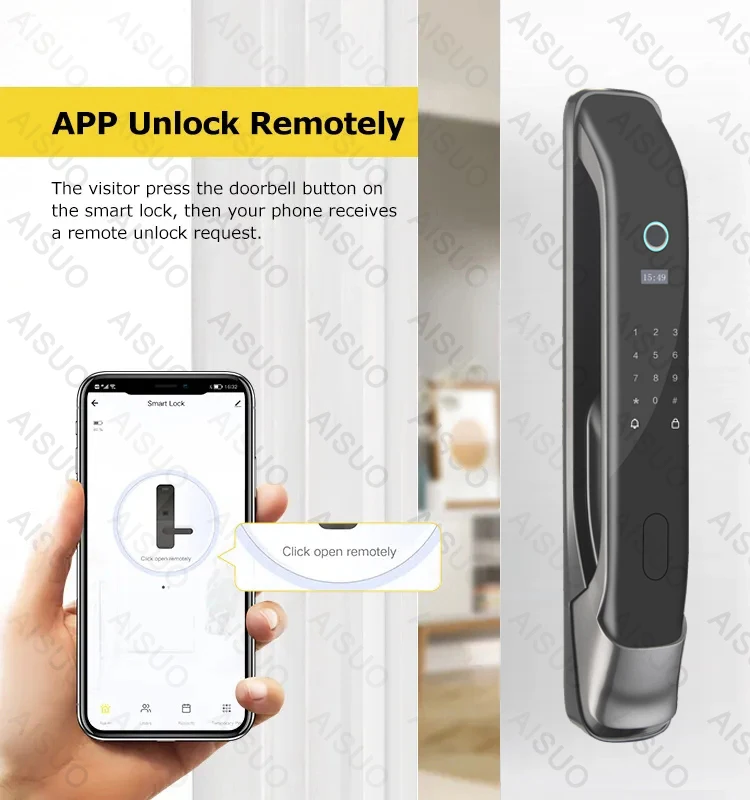

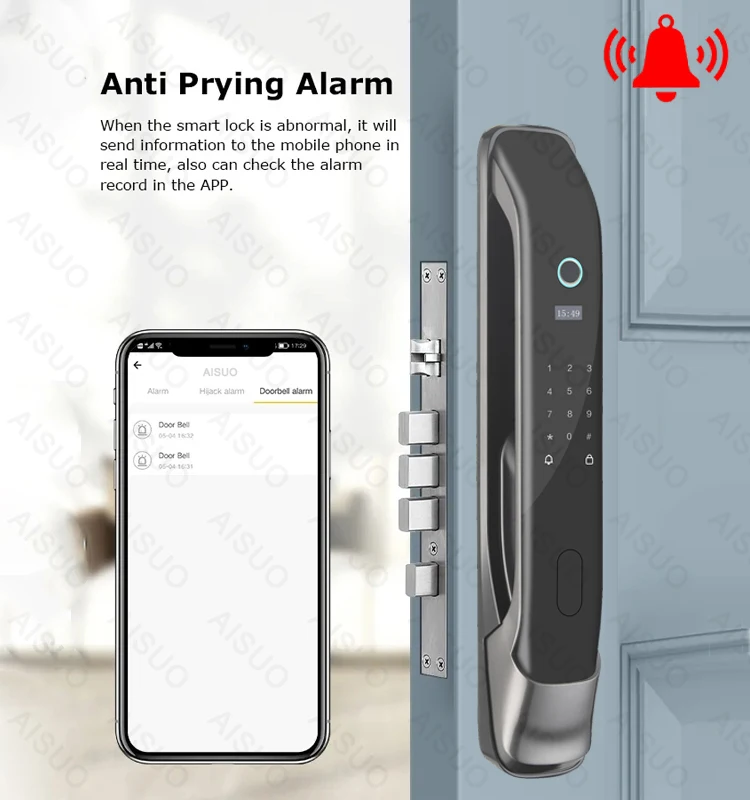

Remote photo unlocking: After pressing the doorbell, the door lock will send a remote unlocking notification to the mobile phone, and you can choose whether to unlock for guests
Dynamic password: one-time password, one-click generation
Temporary password: time range can be set, no upper limit
Information reminder, information record

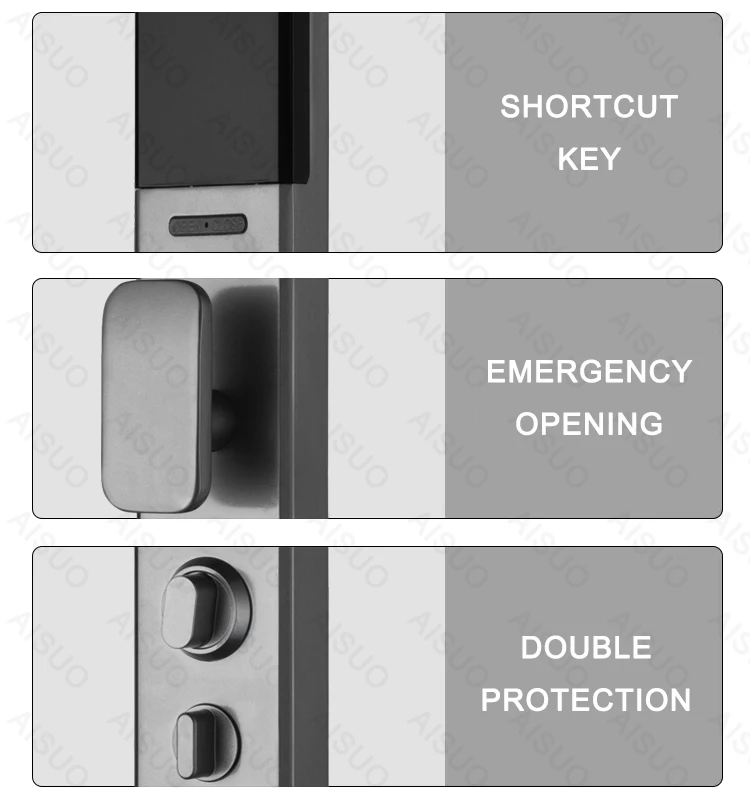

More features

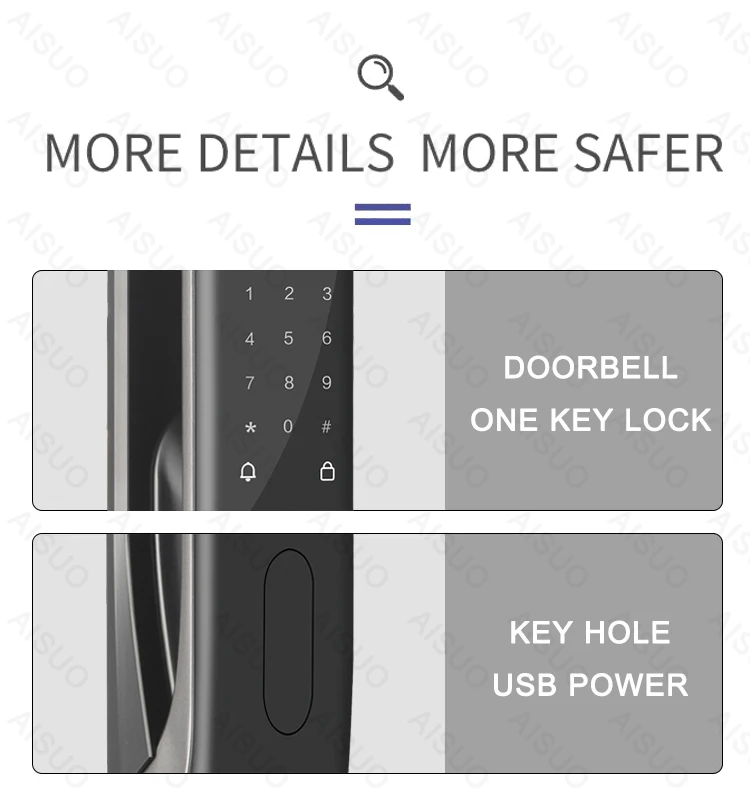

1. Doorbell；
2. Mechanical key and emergency power supply；
3. Indoor shortcut keys；
4. Quickly open the handle；
5. Double locking；
Mechanical function
One-key lock, automatically lock after closing the door, no need to manually lock twice

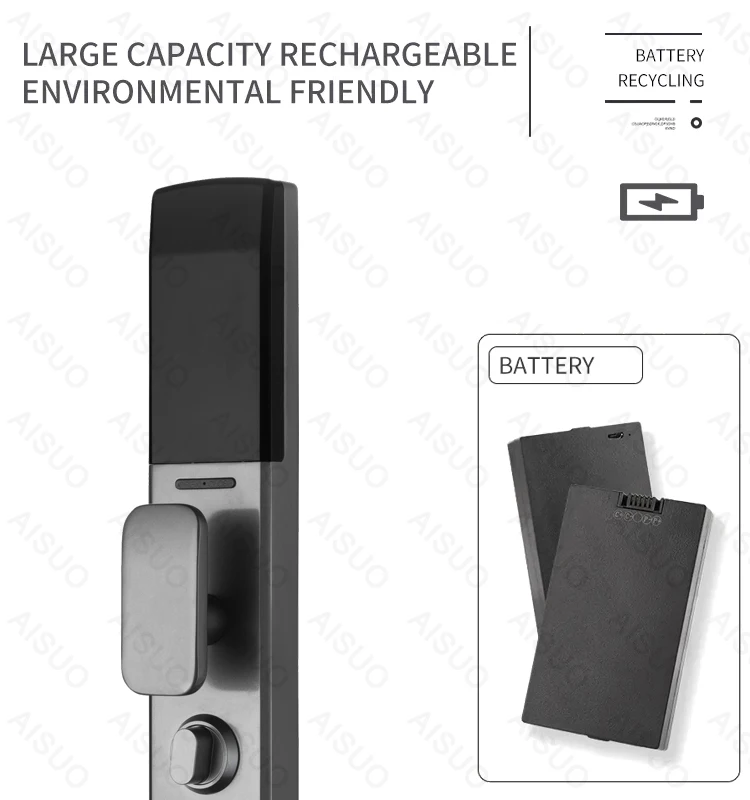

About the battery
The power supply of this product is a built-in lithium battery, 4200mah. Under normal opening frequency, it can generally be used for 4 months to 6 months. It takes one hour to charge each time. It is recommended to use a charger with a power of 5v and 3A for charging.

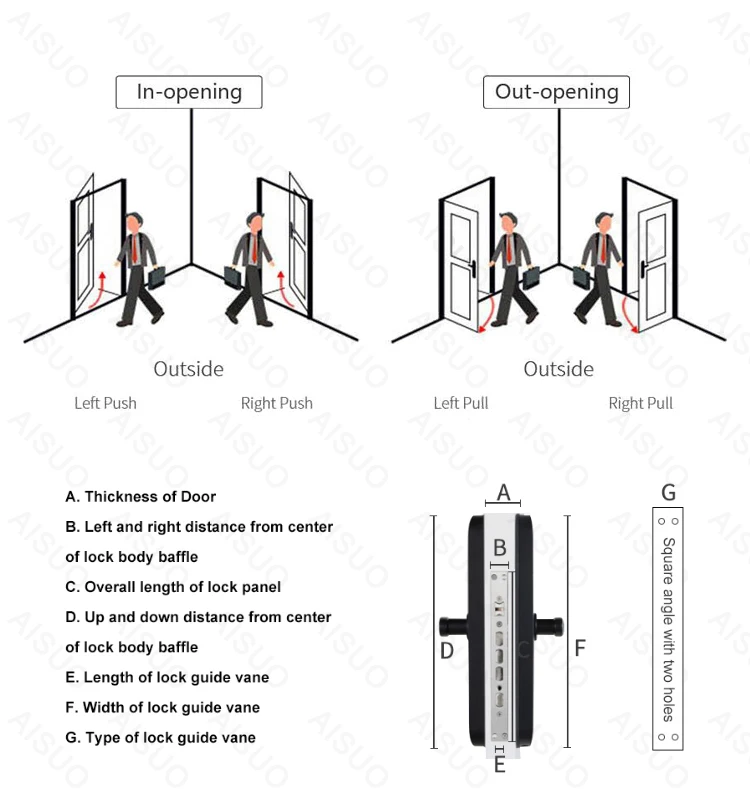

About the door opening direction
The door opening direction can be adjusted freely in the door lock system, compatible with left and right;
Please refer to the illustration for the measurement size, and choose the lock body size compared with the one provided;
About the door opening direction
The door opening direction can be adjusted freely in the door lock system, compatible with left and right;
Please refer to the illustration for the measurement size, and choose the lock body size compared with the one provided;

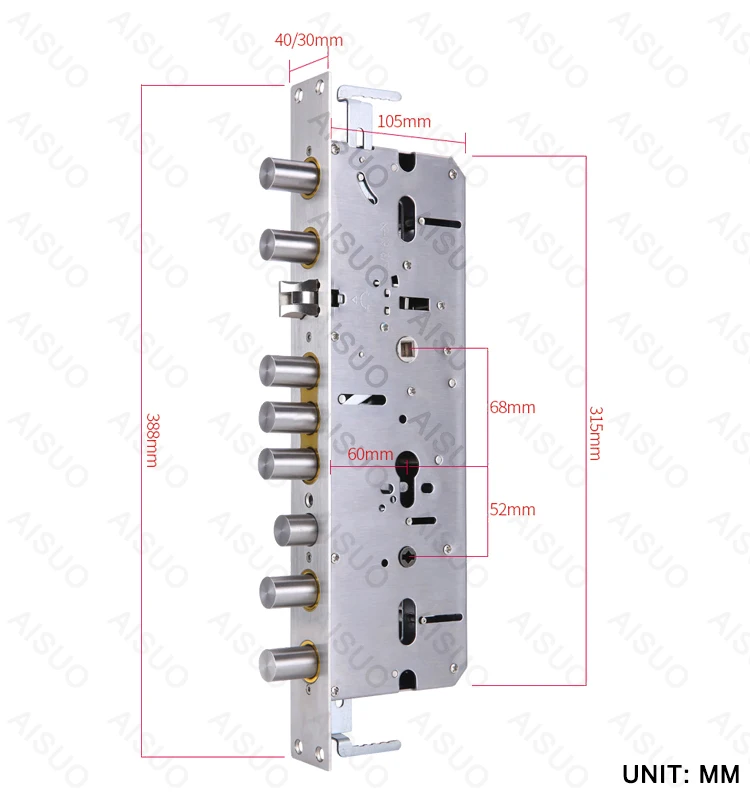

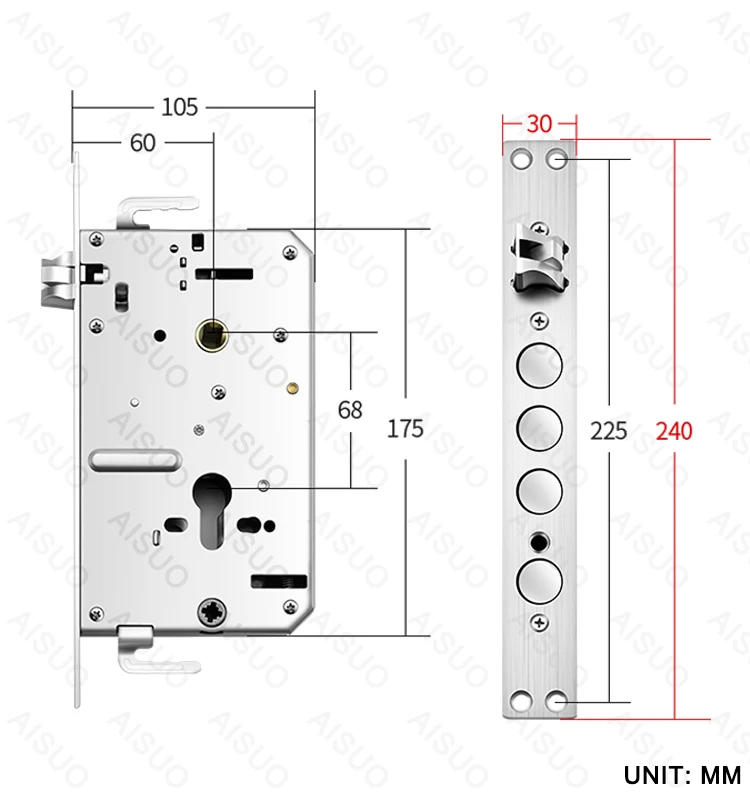

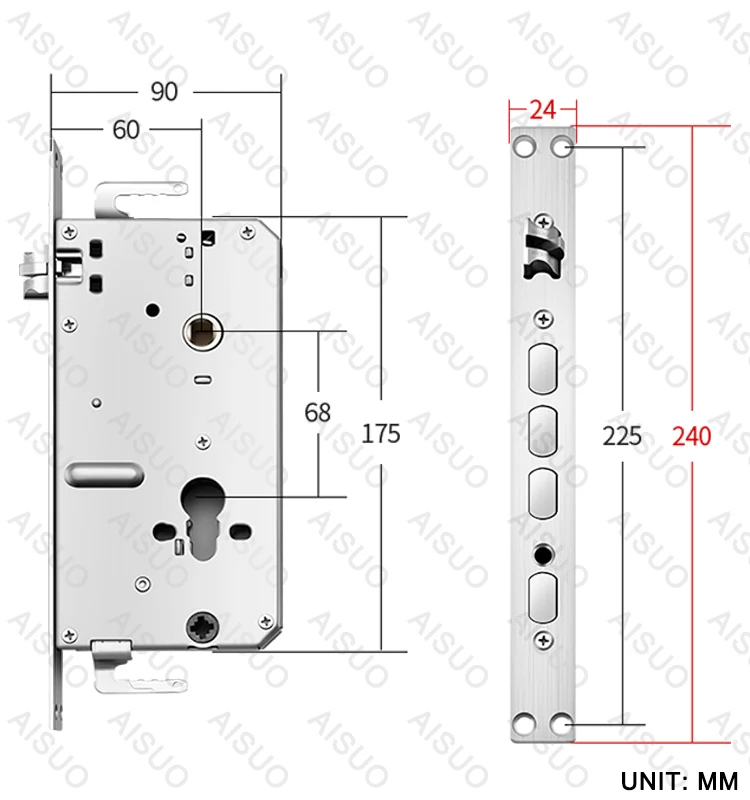

About the lock body size

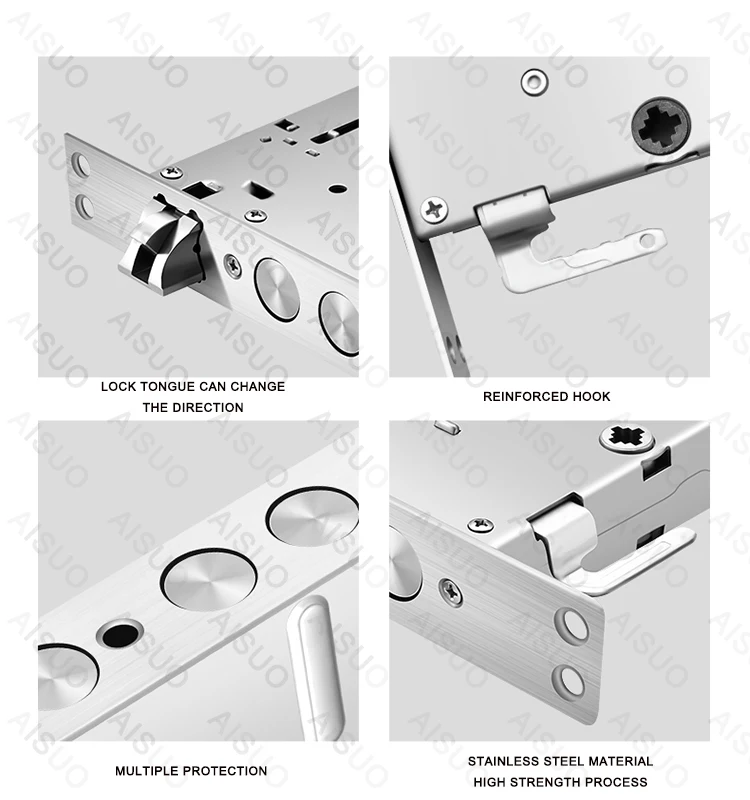

The direction of the lock tongue can be adjusted according to the actual situation, and it is compatible with left and right;
The size of the lock body can be selected according to the actual door lock situation, and the version with upper and lower hooks can be selected;
Among them, the large lock body needs to pay an additional fee, 30/40*388mm, if you need to order, please contact customer service;
About materials

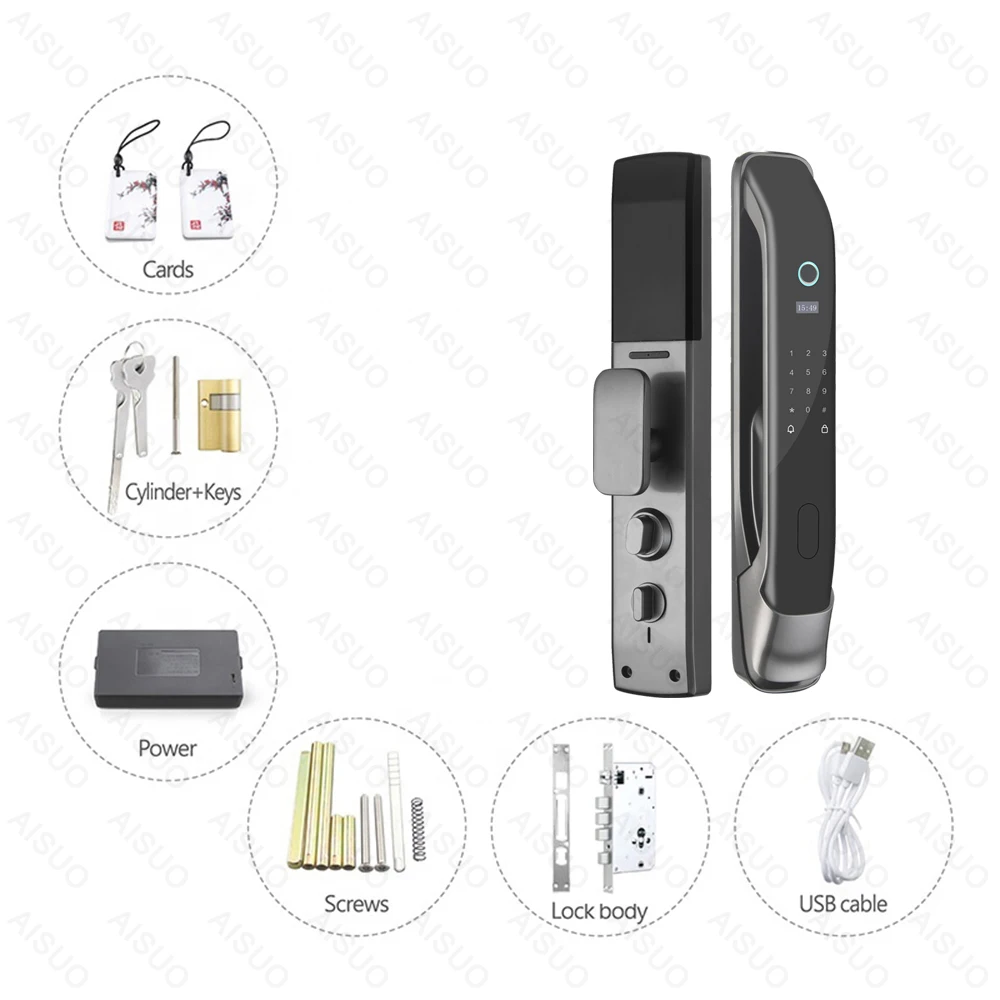

product content
Front panel*1
Rear panel*1
Built-in lithium battery*1
Hardware accessories package*1
Lock body*1
Door frame edge*1
Lock cylinder*1
Lock cylinder accessories package*1
Mechanical key*2
Data cable*1
Magnetic card*2 (random style)
English manual*1
If you need an extra magnetic card, please note in the order, free gift (≤10), the number of mechanical keys is fixed and cannot be copied, thank you

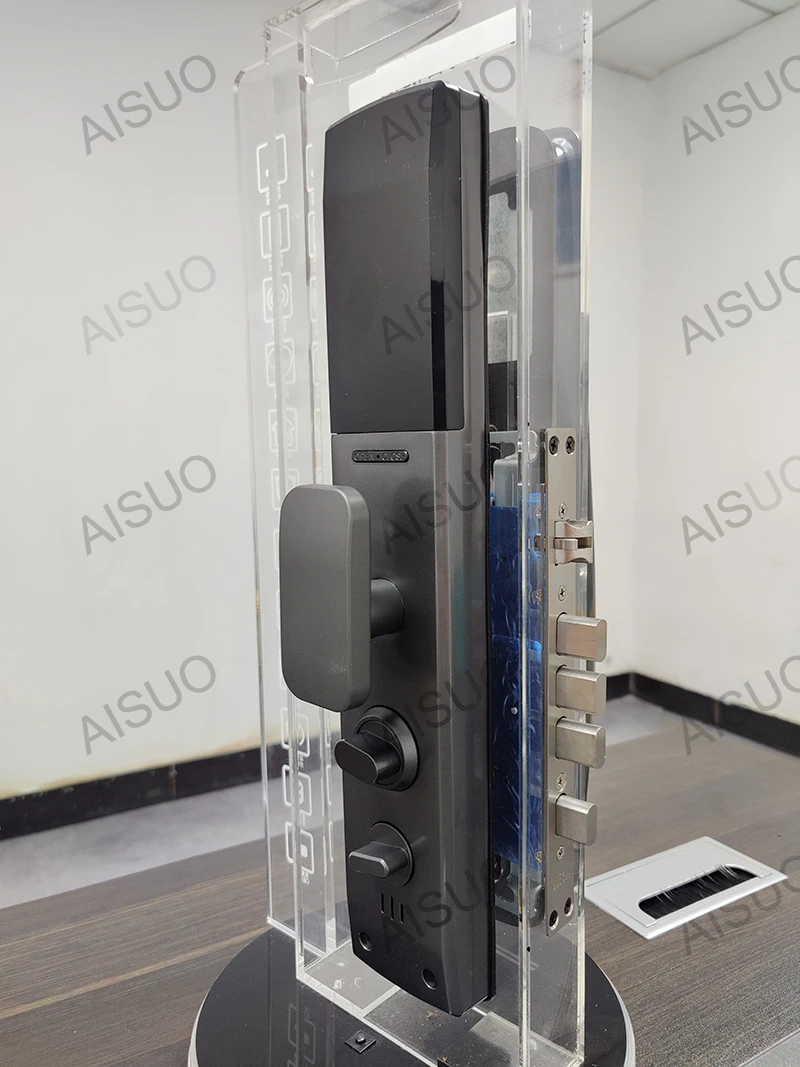

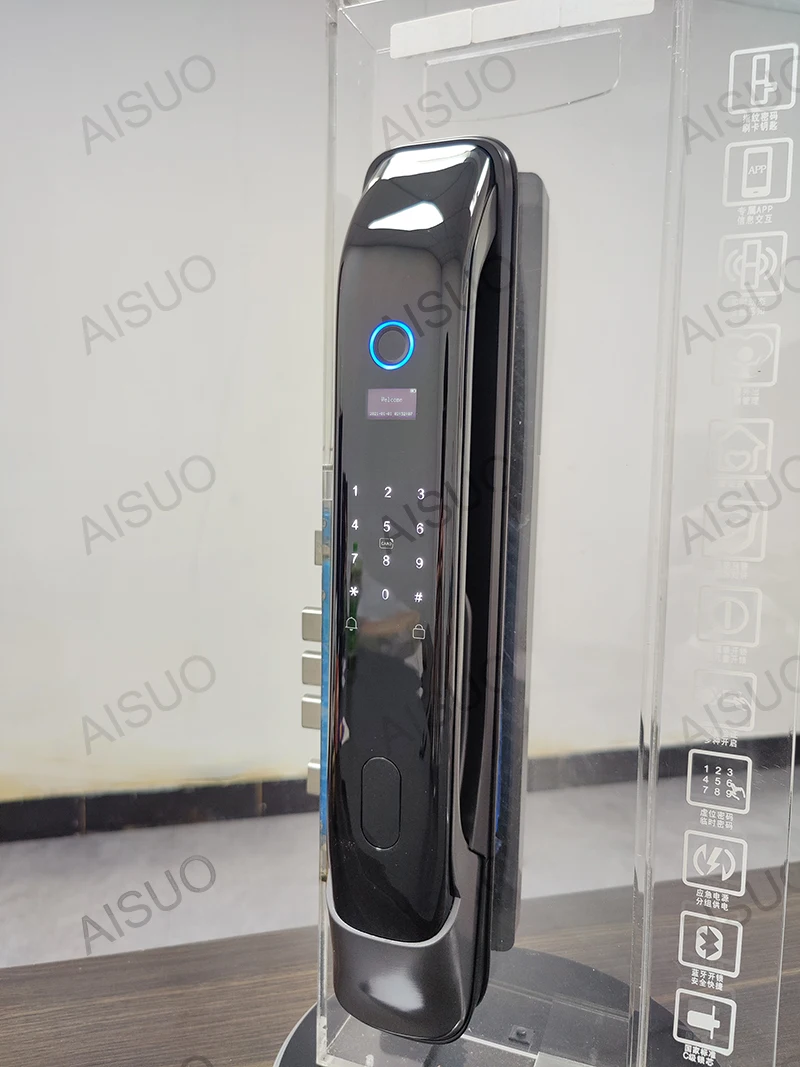

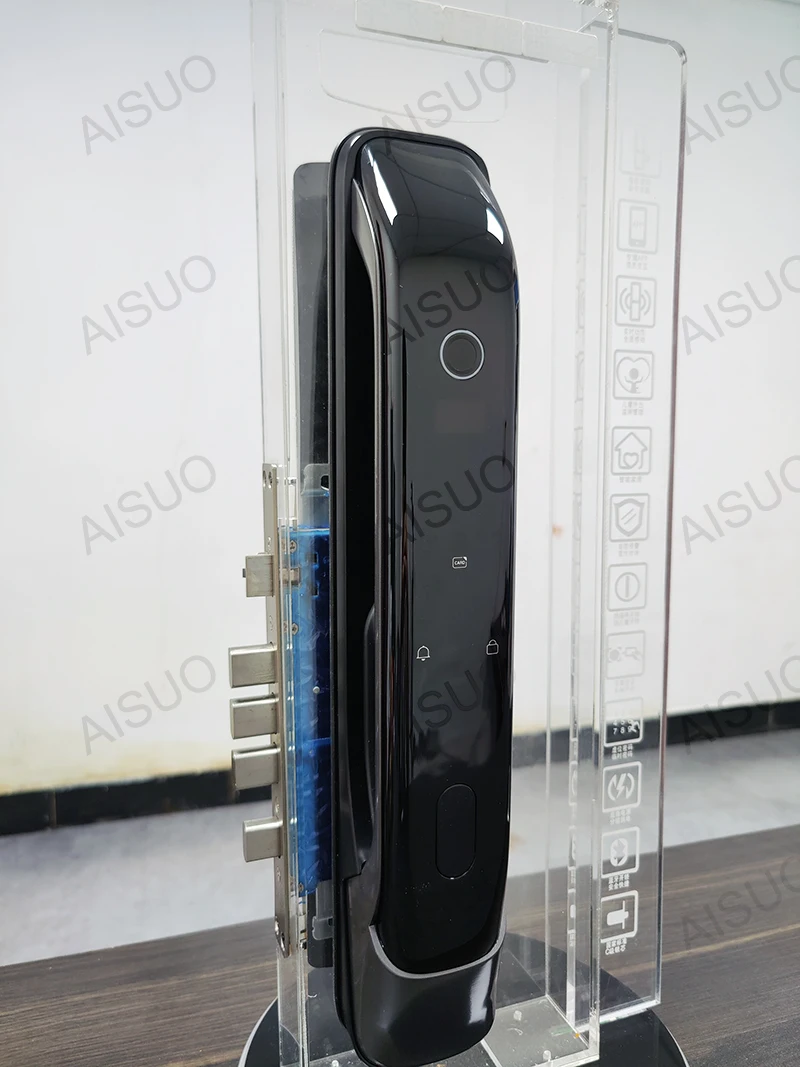

real pictures
